This workflow contains community nodes that are only compatible with the self-hosted version of n8n.

🤖 AI-Powered Document QA System using Webhook, Pinecone + OpenAI + n8n

This project demonstrates how to build a Retrieval-Augmented Generation (RAG) system using n8n, and create a simple Question Answer system using Webhook to connect with User Interface (created using Lovable):

🧾 Downloads the pdf file format documents from Google Drive (contract document, user manual, HR policy document etc...)

📚 Converts them into vector embeddings using OpenAI

🔍 Stores and searches them in Pinecone Vector DB

💬 Allows natural language querying of contracts using AI Agents

📂 Flow 1: Document Loading & RAG Setup

This flow automates:

Reading documents from a Google Drive folder

Vectorizing using text-embedding-3-small

Uploading vectors into Pinecone for later semantic search

🧱 Workflow Structure

A [Manual Trigger] --> B[Google Drive Search]
B --> C[Google Drive Download]
C --> D[Pinecone Vector Store]
D --> E[Default Data Loader]
E --> F[Recursive Character Text Splitter]
E --> G[OpenAI Embedding]

🪜 Steps

Manual Trigger: Kickstarts the workflow on demand for loading new documents.

Google Drive Search & Download

Node: Google Drive (Search: file/folder)

Downloads PDF documents

Apply Recursive Text Splitter: Breaks long documents into overlapping chunks

Settings:
Chunk Size: 1000
Chunk Overlap: 100

OpenAI Embedding

Model: text-embedding-3-small
Used for creating document vectors

Pinecone Vector Store

Host: url
Index: index
Batch Size: 200

Pinecone Settings:

Type: Dense
Region: us-east-1
Mode: Insert Documents

💬 Flow 2: Chat-Based Q&A Agent

This flow enables chat-style querying of stored documents using OpenAI-powered agents with vector memory.

🧱 Workflow Diagram

A[Webhook (chat message)] --> B[AI Agent]
B --> C[OpenAI Chat Model]
B --> D[Simple Memory]
B --> E[Answer with Vector Store]
E --> F[Pinecone Vector Store]
F --> G[Embeddings OpenAI]

🪜 Components

Chat (Trigger): Receives incoming chat queries

AI Agent Node

Handles query flow using:

Chat Model: OpenAI GPT

Memory: Simple Memory

Tool: Question Answer with Vector Store

Pinecone Vector Store: Connected via same embedding index as Flow 1

Embeddings: Ensures document chunks are retrievable using vector similarity

Response Node: Returns final AI response to user via webhook

🌐 Flow 3: UI-Based Query with Lovable

This flow uses a web UI built using Lovable to query contracts directly from a form interface.

📥 Webhook Setup for Lovable

Webhook Node

Method: POST
URL:url
Response: Using 'Respond to Webhook' Node

🧱 Workflow Logic

A[Webhook (Lovable Form)] --> B[AI Agent]
B --> C[OpenAI Chat Model]
B --> D[Simple Memory]
B --> E[Answer with Vector Store]
E --> F[Pinecone Vector Store]
F --> G[Embeddings OpenAI]
B --> H[Respond to Webhook]

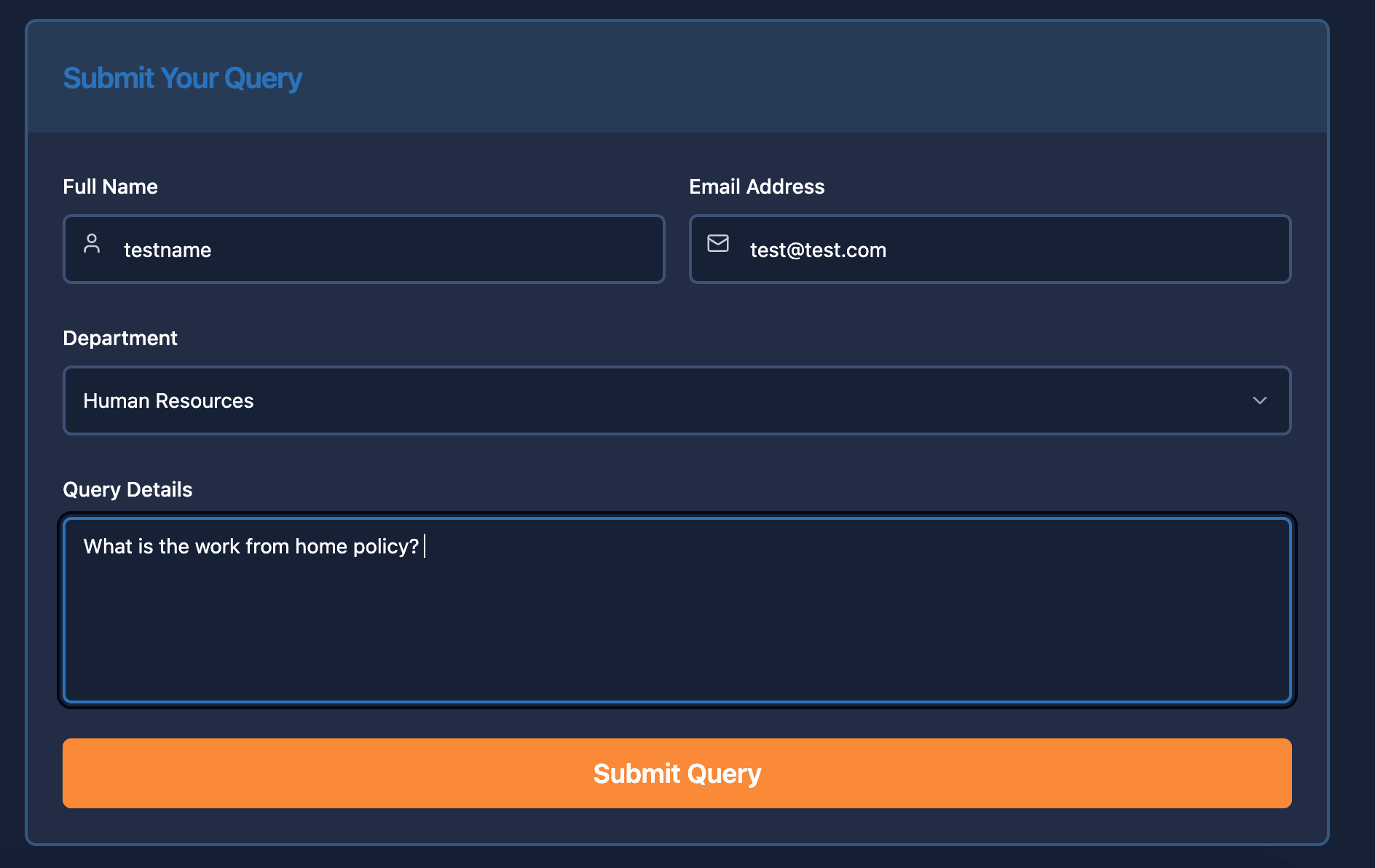

💡 Lovable UI

Users can submit:

Full Name
Email
Department
Freeform Query: User can enter any freeform query.

Data is sent via webhook to n8n and responded with the answer from contract content.

🔍 Use Cases

Contract Querying for Legal/HR teams

Procurement & Vendor Agreement QA

Customer Support Automation (based on terms)

RAG Systems for private document knowledge

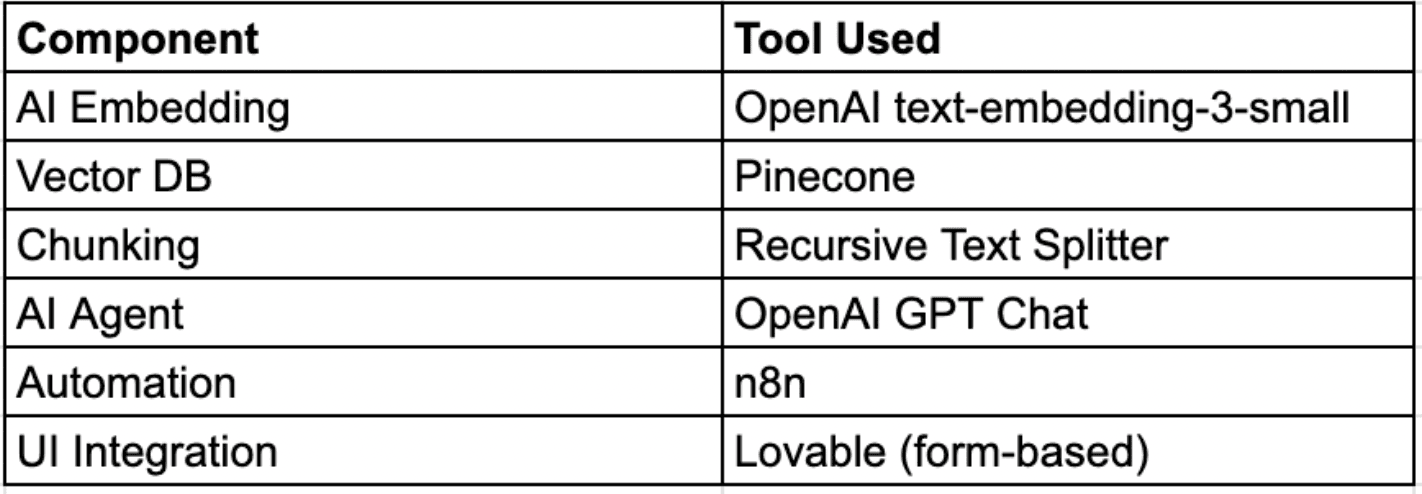

⚙️ Tools & Tech Stack

📌 Final Notes
Pinecone Index: package1536

Dimension: 1536

Chunk Size: 1000, Overlap: 100

Embedding Model: text-embedding-3-small

Feel free to fork the workflow or request the full JSON export.
Looking forward to your suggestions and improvements!
