Create a Knowledge Base Chatbot with Google Drive & GPT-4o using Vector Search

Created by

Created by: Gofive || gofive-ai-eng

Gofive

Last update

Last update 16 hours ago

Categories

Share

Template: Create an AI Knowledge Base Chatbot with Google Drive and OpenAI GPT (Venio/Salesbear)

📋 Template Overview

This comprehensive n8n workflow template creates an intelligent AI chatbot that automatically transforms your Google Drive documents into a searchable knowledge base. The chatbot uses OpenAI's GPT models to provide accurate, context-aware responses based exclusively on your uploaded documents, making it perfect for customer support, internal documentation, and knowledge management systems.

🎯 What This Template Does

Automated Knowledge Processing

  • Real-time Document Monitoring: Automatically detects when files are added or updated in your designated Google Drive folder
  • Intelligent Document Processing: Converts PDFs, text files, and other documents into searchable vector embeddings
  • Smart Text Chunking: Breaks down large documents into optimally-sized chunks for better AI comprehension
  • Vector Storage: Creates a searchable knowledge base that the AI can query for relevant information

AI-Powered Chat Interface

  • Webhook Integration: Receives questions via HTTP requests from any external platform (Venio/Salesbear)
  • Contextual Responses: Maintains conversation history for natural, flowing interactions
  • Source-Grounded Answers: Provides responses based strictly on your document content, preventing hallucinations
  • Multi-platform Support: Works with any chat platform that can send HTTP requests

🔧 Pre-conditions and Requirements

Required API Accounts and Permissions

1. Google Drive API Access

  • Google Cloud Platform account
  • Google Drive API enabled
  • OAuth2 credentials configured
  • Read access to your target Google Drive folder

2. OpenAI API Account

  • Active OpenAI account with API access
  • Sufficient API credits for embeddings and chat completions
  • API key with appropriate permissions

3. n8n Instance

  • n8n cloud account or self-hosted instance
  • Webhook functionality enabled
  • Ability to install community nodes (LangChain nodes)

4. Target Chat Platform (Optional)

  • API credentials for your chosen chat platform
  • Webhook capability or API endpoints for message sending

Required Permissions

  • Google Drive: Read access to folder contents and file downloads
  • OpenAI: API access for text-embedding-ada-002 and gpt-4o-mini models
  • External Platform: API access for sending/receiving messages (if integrating with existing chat systems)

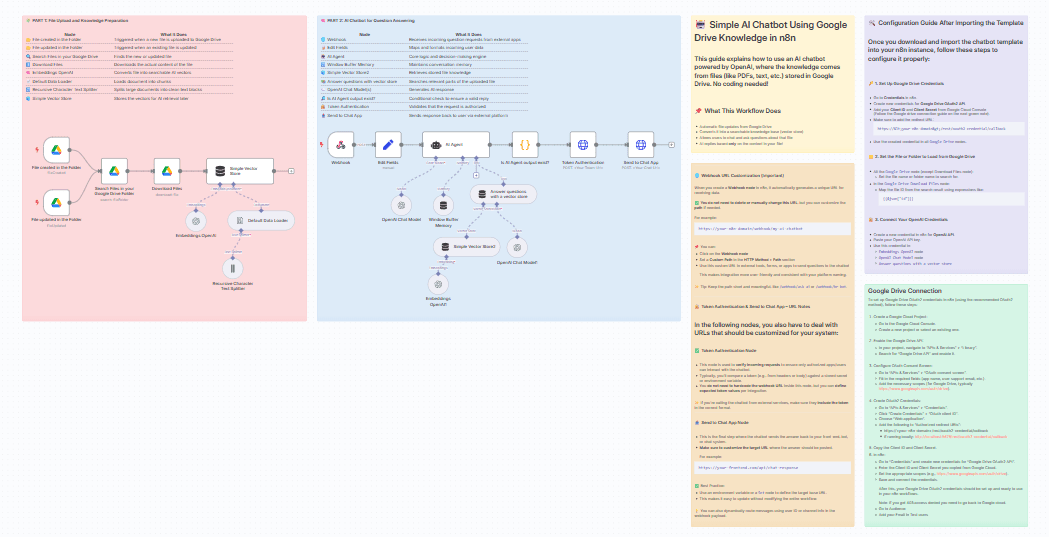

🚀 Detailed Workflow Operation

Phase 1: Knowledge Base Creation

  1. File Monitoring: Two trigger nodes continuously monitor your Google Drive folder for new files or updates
  2. Document Discovery: When changes are detected, the workflow searches for and identifies the modified files
  3. Content Extraction: Downloads the actual file content from Google Drive
  4. Text Processing: Uses LangChain's document loader to extract text from various file formats
  5. Intelligent Chunking: Splits documents into overlapping chunks (configurable size) for optimal AI processing
  6. Vector Generation: Creates embeddings using OpenAI's text-embedding-ada-002 model
  7. Storage: Stores vectors in an in-memory vector store for instant retrieval

Phase 2: Chat Interaction

  1. Question Reception: Webhook receives user questions in JSON format
  2. Data Extraction: Parses incoming data to extract chat content and session information
  3. AI Processing: AI Agent analyzes the question and determines relevant context
  4. Knowledge Retrieval: Searches the vector store for the most relevant document sections
  5. Response Generation: OpenAI generates responses based on found content and conversation history
  6. Authentication: Validates the request using token-based authentication
  7. Response Delivery: Sends the answer back to the originating platform

📚 Usage Instructions After Setup

Adding Documents to Your Knowledge Base

  1. Upload Files: Simply drag and drop documents into your configured Google Drive folder
  2. Supported Formats: PDFs, TXT, DOC, DOCX, and other text-based formats
  3. Automatic Processing: The workflow will automatically detect and process new files within minutes
  4. Updates: Modify existing files, and the knowledge base will automatically update

Integrating with Your Chat Platform

Webhook URL: Use the generated webhook URL to send questions

POST https://your-n8n-domain/webhook/your-custom-path
Content-Type: application/json

{
"body": {
"Data": {
"ChatMessage": {
"Content": "What are your business hours?",
"RoomId": "user-123-session",
"Platform": "web",
"User": {
"CompanyId": "company-456"
}
}
}
}
}

Response Format: The chatbot returns structured responses that your platform can display

Testing Your Chatbot

  1. Initial Test: Send a simple question about content you know exists in your documents
  2. Context Testing: Ask follow-up questions to test conversation memory
  3. Edge Cases: Try questions about topics not in your documents to verify appropriate responses
  4. Performance: Monitor response times and accuracy

🎨 Customization Options

System Message Customization

Modify the AI Agent's system message to match your brand and use case:

You are a [YOUR_BRAND] customer support specialist. You provide helpful, accurate information based on our documentation. Always maintain a [TONE] tone and [SPECIFIC_GUIDELINES].

Response Behavior Customization

  • Tone and Voice: Adjust from professional to casual, formal to friendly
  • Response Length: Configure for brief answers or detailed explanations
  • Fallback Messages: Customize what the bot says when it can't find relevant information
  • Language Support: Adapt for different languages or technical terminologies

Technical Configuration Options

Document Processing

  • Chunk Size: Adjust from 1000 to 4000 characters based on your document complexity
  • Overlap: Modify overlap percentage for better context preservation
  • File Types: Add support for additional document formats

AI Model Configuration

  • Model Selection: Switch between gpt-4o-mini (cost-effective) and gpt-4 (higher quality)
  • Temperature: Adjust creativity vs. factual accuracy (0.0 to 1.0)
  • Max Tokens: Control response length limits

Memory and Context

  • Conversation Window: Adjust how many previous messages to remember
  • Session Management: Configure session timeout and user identification
  • Context Retrieval: Tune how many document chunks to consider per query

Integration Customization

Authentication Methods

  • Token-based: Default implementation with bearer tokens
  • API Key: Simple API key validation
  • OAuth: Full OAuth2 implementation for secure access
  • Custom Headers: Validate specific headers or signatures

Response Formatting

  • JSON Structure: Customize response format for your platform
  • Markdown Support: Enable rich text formatting in responses
  • Error Handling: Define custom error messages and codes

🎯 Specific Use Case Examples

Customer Support Chatbot

Scenario: E-commerce company with product documentation, return policies, and FAQ documents
Setup: Upload product manuals, policy documents, and common questions to Google Drive
Customization: Professional tone, concise answers, escalation triggers for complex issues
Integration: Website chat widget, mobile app, or customer portal

Internal HR Knowledge Base

Scenario: Company HR department with employee handbook, policies, and procedures
Setup: Upload HR policies, benefits information, and procedural documents
Customization: Friendly but professional tone, detailed policy explanations
Integration: Internal Slack bot, employee portal, or HR ticketing system

Technical Documentation Assistant

Scenario: Software company with API documentation, user guides, and troubleshooting docs
Setup: Upload API docs, user manuals, and technical specifications
Customization: Technical tone, code examples, step-by-step instructions
Integration: Developer portal, support ticket system, or documentation website

Educational Content Helper

Scenario: Educational institution with course materials, policies, and student resources
Setup: Upload syllabi, course content, academic policies, and student guides
Customization: Helpful and encouraging tone, detailed explanations
Integration: Learning management system, student portal, or mobile app

Healthcare Information Assistant

Scenario: Medical practice with patient information, procedures, and policy documents
Setup: Upload patient guidelines, procedure explanations, and practice policies
Customization: Compassionate tone, clear medical explanations, disclaimer messaging
Integration: Patient portal, appointment system, or mobile health app

🔧 Advanced Customization Examples

Multi-Language Support

// In Edit Fields node, detect language and route accordingly
const language = $json.body.Data.ChatMessage.Language || 'en';
const systemMessage = {
'en': 'You are a helpful customer support assistant...',
'es': 'Eres un asistente de soporte al cliente útil...',
'fr': 'Vous êtes un assistant de support client utile...'
};

Department-Specific Routing

// Route questions to different knowledge bases based on department
const department = $json.body.Data.ChatMessage.Department;
const vectorStoreKey = `vector_store_${department}`;

Advanced Analytics Integration

// Track conversation metrics
const analytics = {
userId: $json.body.Data.ChatMessage.User.Id,
timestamp: new Date().toISOString(),
question: $json.body.Data.ChatMessage.Content,
response: $json.response,
responseTime: $json.processingTime
};

📊 Performance Optimization Tips

Document Management

  • Optimal File Size: Keep documents under 10MB for faster processing
  • Clear Structure: Use headers and sections for better chunking
  • Regular Updates: Remove outdated documents to maintain accuracy
  • Logical Organization: Group related documents in subfolders

Response Quality

  • System Message Refinement: Regularly update based on user feedback
  • Context Tuning: Adjust chunk size and overlap for your specific content
  • Testing Framework: Implement systematic testing for response accuracy
  • User Feedback Loop: Collect and analyze user satisfaction data

Cost Management

  • Model Selection: Use gpt-4o-mini for cost-effective responses
  • Caching Strategy: Implement response caching for frequently asked questions
  • Usage Monitoring: Track API usage and set up alerts
  • Batch Processing: Process multiple documents efficiently

🛡️ Security and Compliance

Data Protection

  • Document Security: Ensure sensitive documents are properly secured
  • Access Control: Implement proper authentication and authorization
  • Data Retention: Configure appropriate data retention policies
  • Audit Logging: Track all interactions for compliance

Privacy Considerations

  • User Data: Minimize collection and storage of personal information
  • Session Management: Implement secure session handling
  • Compliance: Ensure adherence to relevant privacy regulations
  • Encryption: Use HTTPS for all communications

🚀 Deployment and Scaling

Production Readiness

  • Environment Variables: Use environment variables for sensitive configurations
  • Error Handling: Implement comprehensive error handling and logging
  • Monitoring: Set up monitoring for workflow health and performance
  • Backup Strategy: Ensure document and configuration backups

Scaling Considerations

  • Load Testing: Test with expected user volumes
  • Rate Limiting: Implement appropriate rate limiting
  • Database Scaling: Consider external vector database for large-scale deployments
  • Multi-Instance: Configure for multiple n8n instances if needed

📈 Success Metrics and KPIs

Quantitative Metrics

  • Response Accuracy: Percentage of correct answers
  • Response Time: Average time from question to answer
  • User Satisfaction: Rating scores and feedback
  • Usage Volume: Questions per day/week/month
  • Cost Efficiency: Cost per interaction

Qualitative Metrics

  • User Feedback: Qualitative feedback on response quality
  • Use Case Coverage: Percentage of user needs addressed
  • Knowledge Gaps: Identification of missing information
  • Conversation Quality: Natural flow and context understanding
